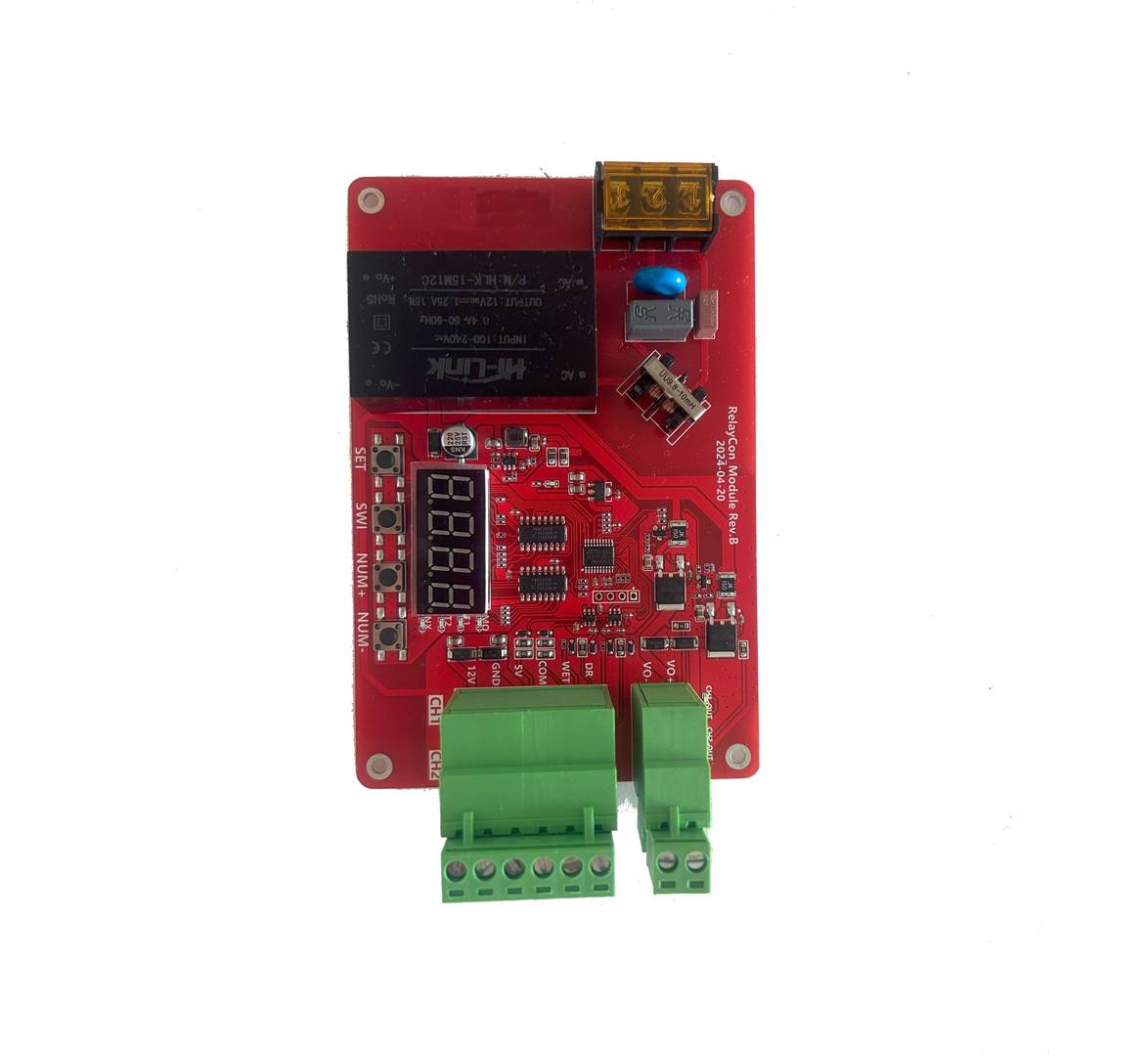

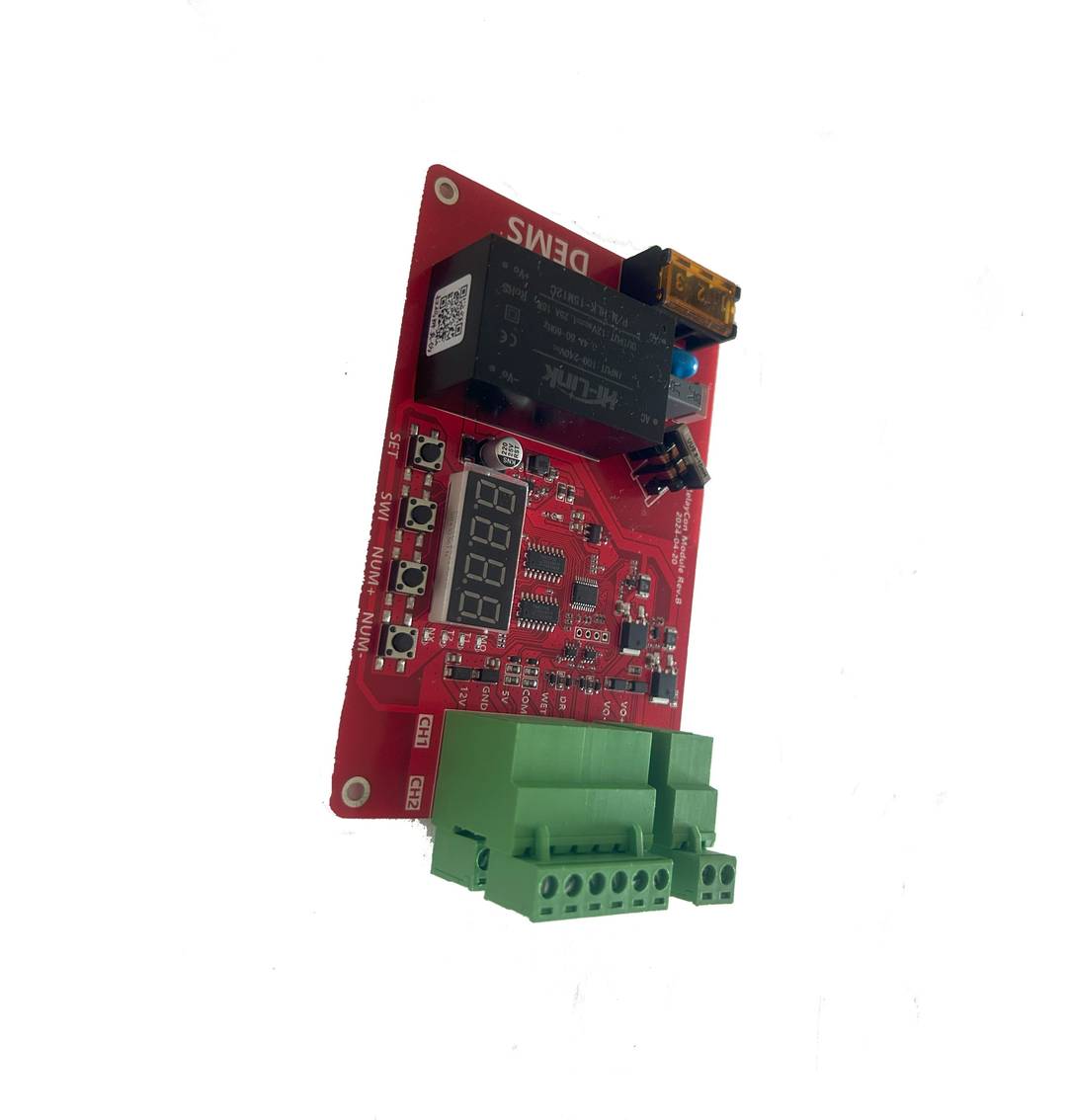

AC 220V Delay Relay Delay Time Multi-function Module Infinite Loop Countdown Switch Control Module Timer Module
The multifunctional relay control module, designed for the customers of different needs, micro-controller as the main control unit, preset 18 kinds of functions, and can be based on user needs, customize and add other specific functions.
The module using of high-quality power relay module, high-power and high-voltage transistor, red & blue signal lights, double-sided PCB board, stable performance, can be widely used in a variety of power control occasions.
- Parameters:
Working voltage: 85V-265VAC 50/60Hz or 120V-350VDC
Output power: typical value 14W (sum of the power of all output power signals)
CH dry node input switch resistance <=200Ω
CH wet node maximum input range 0 – 16V, high level threshold: typical value 2.5V, low level threshold: typical value 0.7V

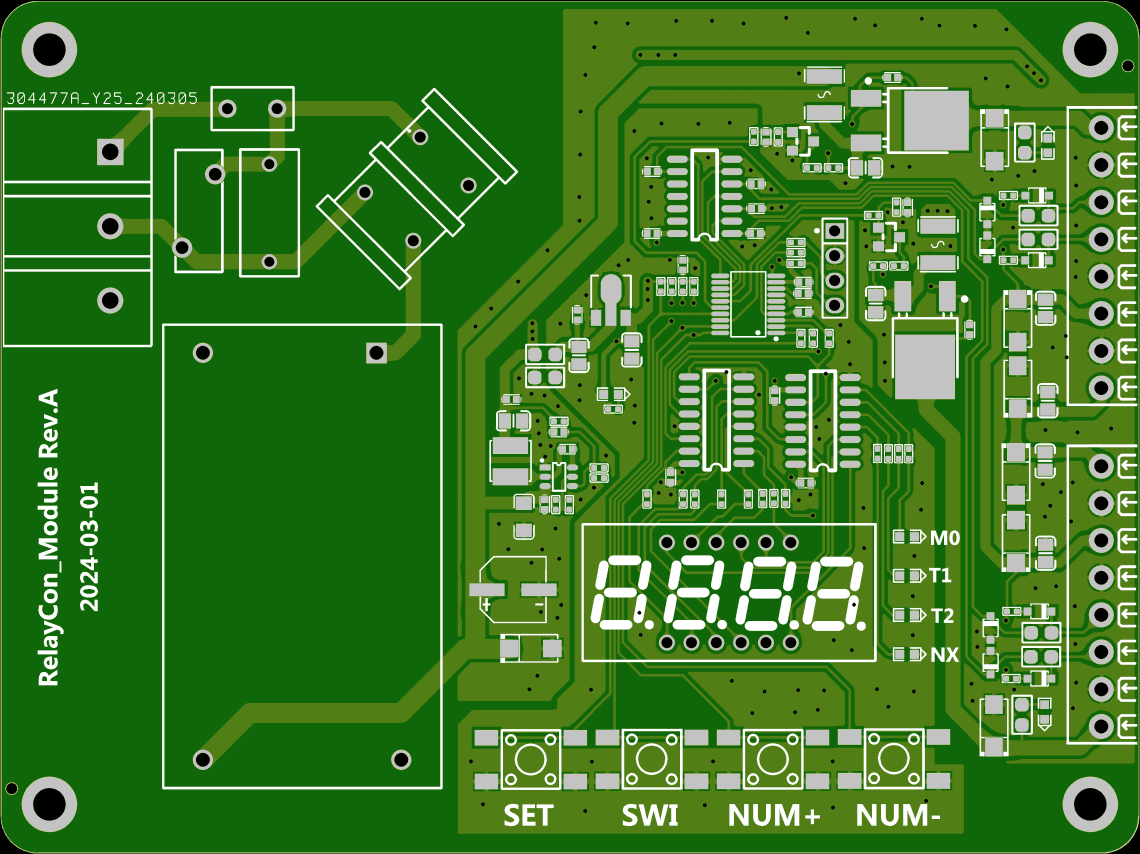

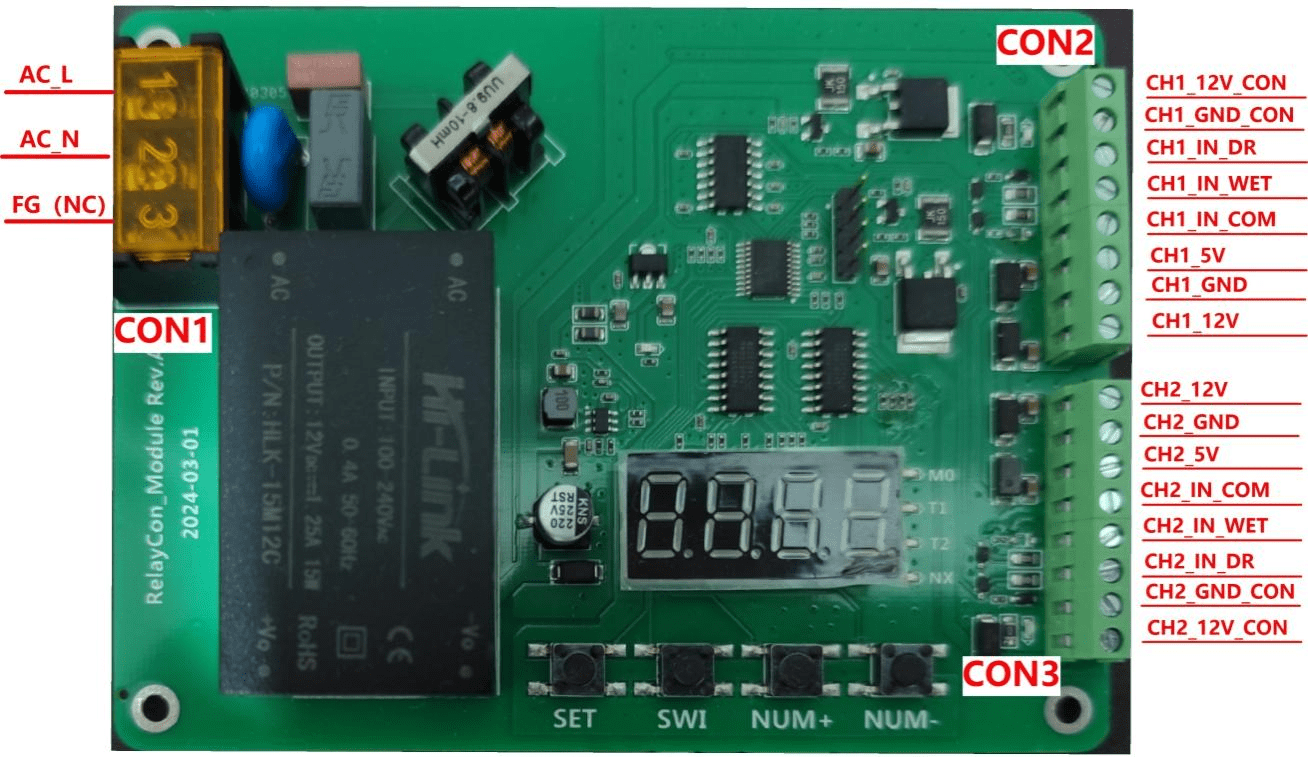

| Terminals | Description | Remark |
| CON1 | Power supply | Power supply port |
|
CON2 |
CH1_12V_CON | 12V controllable output power supply positive terminal |
| CH1_GND_CON | Controllable output power ground | |
| CH1_IN_DR | CH1 dry node (switch signal) input | |
| CH1_IN_WET | CH1 wet node (voltage signal) input | |
| CH1_IN_COM | CH1 input signal common terminal | |
| CH1_5V | CH1 5V output – output when the module is powered on | |
| CH1_GND | CH1 GND | |
| CH1_12V | CH1 12V output – output when the module is powered on | |
| CON3 | CH2 Signal | See the picture above and the port description of CH1 |
